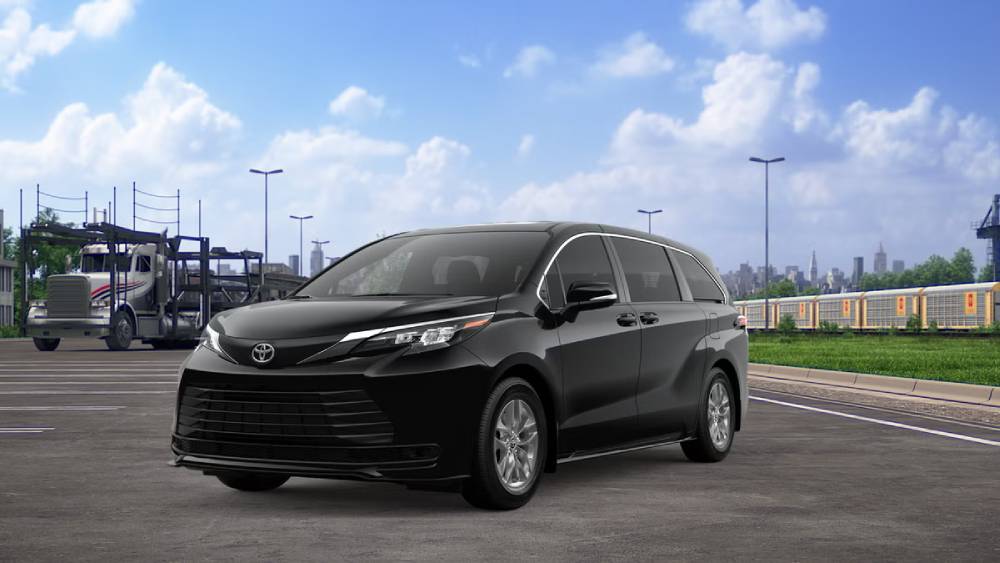

Toyota Sienna Air Conditioning Recharge: Complete Step-by-Step Guide

Few things are more frustrating than climbing into your Toyota Sienna on a hot summer day, turning the air conditioner to maximum, and discovering that the vents are blowing warm air instead of the refreshing cool breeze you expect. Whether you use your Sienna for daily commuting, family road trips, or transporting passengers, a properly functioning air conditioning system is essential for comfort and safety.

Many vehicle owners immediately assume that weak AC performance means a costly repair. However, in many cases, the problem may be as simple as low refrigerant levels. Over time, small amounts of refrigerant can be lost through normal system wear, reducing the air conditioner’s ability to cool the cabin efficiently. A Toyota Sienna air conditioning recharge can often restore cooling performance and help extend the life of critical AC components.

The challenge for many owners is knowing whether their vehicle truly needs a recharge, identifying the correct refrigerant type, and understanding how to perform the procedure safely. Using the wrong refrigerant or overcharging the system can lead to expensive repairs that could have been avoided.

In this complete step-by-step guide, you’ll learn how the Toyota Sienna AC system works, how to recognize the signs of low refrigerant, what tools you’ll need, and how to properly recharge your air conditioning system to restore cold air and improve driving comfort.

Understanding the Toyota Sienna Air Conditioning System

Before performing a Toyota Sienna air conditioning recharge, it is important to understand how the system operates. Knowing the basic components and their functions can help you diagnose problems more accurately and avoid unnecessary repairs.

The air conditioning system in a Toyota Sienna consists of several key components working together to cool the cabin. The compressor pressurizes the refrigerant and circulates it through the system. The condenser removes heat from the refrigerant, allowing it to cool and condense into a liquid. The expansion valve regulates refrigerant flow, while the evaporator absorbs heat from the air inside the vehicle. A blower motor then pushes the cooled air through the vents into the passenger compartment.

Refrigerant plays a critical role in this process because it carries heat away from the cabin. When refrigerant levels drop below the recommended amount, the system loses efficiency and can no longer produce sufficiently cold air. In some cases, low refrigerant levels can also increase strain on the compressor, potentially leading to more expensive repairs.

Toyota Sienna models use different refrigerant types depending on the model year. Older models commonly use R134a refrigerant, while many newer models are equipped with the more environmentally friendly R1234yf refrigerant. Always verify the correct refrigerant type by checking the label located under the hood before beginning any recharge procedure.

Signs Your Toyota Sienna Needs an Air Conditioning Recharge

One of the most common reasons owners search for a Toyota Sienna air conditioning recharge guide is because the air conditioner no longer cools as effectively as it once did. While several issues can affect AC performance, low refrigerant is often among the first things to investigate.

The most obvious sign is warm or mildly cool air coming from the vents even when the system is set to its lowest temperature. If your AC previously produced cold air but now struggles to cool the cabin, refrigerant loss may be the cause.

Another common symptom is frequent compressor cycling. The compressor clutch may repeatedly engage and disengage as the system attempts to maintain proper pressure. This behavior often indicates insufficient refrigerant levels.

You may also notice that the cabin takes much longer to cool after starting the vehicle. During hot weather, the difference can become especially noticeable. What once took only a few minutes may now require significantly more time.

Unusual noises can provide additional clues. Hissing sounds, bubbling noises, or faint whistling may indicate refrigerant escaping through a leak. In some cases, you may even find oily residue around AC hoses, fittings, or the compressor, which can signal a refrigerant leak requiring repair before a recharge is performed.

Recognizing these warning signs early can help prevent further damage and restore cooling performance before the problem becomes more serious.

Tools and Materials Needed for a Toyota Sienna Air Conditioning Recharge

Having the correct tools and materials is essential for a successful AC recharge. Attempting the procedure without proper equipment can lead to inaccurate pressure readings, poor cooling performance, or potential damage to the air conditioning system.

The most important item is an AC recharge kit designed for automotive applications. Most kits include a charging hose, pressure gauge, and connection fittings that allow refrigerant to be safely introduced into the system.

You will also need the correct refrigerant for your Toyota Sienna. As mentioned earlier, this may be either R134a or R1234yf depending on the model year. Using the wrong refrigerant can damage system components and may violate environmental regulations.

Safety equipment should never be overlooked. Protective gloves help prevent frostbite caused by refrigerant contact, while safety glasses protect your eyes from accidental exposure. Refrigerant can expand rapidly when released and may cause serious injury if handled improperly.

Additional tools can make the process easier and more effective. A digital thermometer allows you to measure vent temperatures before and after the recharge. A UV leak detection kit can help identify refrigerant leaks that may otherwise go unnoticed. These tools are particularly useful if your vehicle repeatedly loses cooling performance after being recharged.

Taking the time to gather the correct equipment before starting the job can save both time and money while helping ensure a safe and successful recharge process.

Safety Precautions Before Recharging the AC System

Safety should always be your top priority when working with any automotive air conditioning system. Refrigerant is stored under pressure and can cause injuries if handled incorrectly. Taking a few precautions before starting the recharge process can protect both you and your vehicle.

Begin by wearing appropriate safety equipment. Protective gloves help prevent skin contact with refrigerant, which can cause severe cold burns due to its rapid expansion. Safety glasses are equally important because accidental refrigerant discharge can cause serious eye injuries.

Always perform the recharge procedure in a well-ventilated area. Although automotive refrigerants are generally safe when used properly, concentrated exposure can be harmful. Working outdoors or in a garage with adequate airflow helps minimize risk.

Avoid overcharging the system. Many vehicle owners mistakenly believe that adding more refrigerant will result in colder air. In reality, too much refrigerant can increase system pressure, reduce cooling efficiency, and place excessive strain on the compressor. Overcharging can ultimately lead to costly component failures.

Another critical rule is to never mix refrigerant types. R134a and R1234yf systems are designed differently and require specific refrigerants. Mixing them can contaminate the system and significantly increase repair costs.

Finally, inspect the system for visible damage before beginning the recharge. Cracked hoses, damaged fittings, or signs of major leaks should be addressed before adding refrigerant. Recharging a leaking system is only a temporary solution and will not resolve the underlying issue.

Toyota Sienna Air Conditioning Recharge Step by Step Guide

Once you have confirmed that the system likely suffers from low refrigerant and have gathered the necessary tools, you can begin the recharge process. Following these steps carefully will help ensure the best results.

Start by parking the vehicle on a level surface and engaging the parking brake. Open the hood and locate the low-pressure service port. This port is typically found on the larger AC line between the evaporator and compressor. Most vehicles include a cap labeled with an “L” to identify the low-pressure side.

Before adding refrigerant, connect the pressure gauge from your recharge kit to the low-pressure port. Read the current system pressure and compare it to the recommended range provided with the recharge kit. If pressure is significantly below specification, the system may require additional refrigerant.

Next, start the engine and set the air conditioning system to maximum cooling. Select the highest fan speed and activate recirculation mode if available. These settings help create the conditions needed for an accurate recharge.

Attach the refrigerant can to the charging hose according to the manufacturer’s instructions. Connect the hose securely to the low-pressure service port. Once connected, slowly introduce refrigerant into the system while monitoring the pressure gauge. Add refrigerant gradually rather than all at once.

As refrigerant enters the system, periodically check the gauge and monitor the temperature of the air coming from the vents. You should notice the air becoming progressively colder as pressure approaches the recommended range.

When the correct pressure is reached, stop adding refrigerant and disconnect the charging hose. Replace the service port cap securely to prevent contamination and leakage.

Allow the system to run for several minutes and verify that cold air is consistently flowing through the vents. A short test drive can also help confirm that the air conditioning system is operating normally under real-world conditions.

Common Mistakes to Avoid During an AC Recharge

Even a relatively simple recharge procedure can produce poor results if common mistakes are made. Understanding these errors can help you avoid unnecessary expenses and ensure your Toyota Sienna’s air conditioning system performs as intended.

One of the most frequent mistakes is adding too much refrigerant. Overcharged systems often cool less effectively than properly charged systems and may experience excessive pressure that can damage critical components. Always rely on pressure readings and manufacturer specifications rather than guessing.

Another common mistake is ignoring refrigerant leaks. If refrigerant levels have dropped significantly, there is usually a reason. While small losses can occur over time, substantial refrigerant loss often indicates a leak that should be repaired. Simply recharging the system without addressing the leak may provide only temporary relief.

Using the incorrect refrigerant is another costly error. Different Toyota Sienna model years require different refrigerants, and substituting one for another can cause compatibility issues, reduced performance, and expensive repairs.

Many first-time users also attempt to connect the recharge hose to the high-pressure service port. This can be dangerous because the high-pressure side operates at significantly higher pressures than the low-pressure side. Always verify the correct service port before connecting any equipment.

Finally, some vehicle owners skip system inspections altogether. If the compressor, condenser, electrical controls, or expansion valve are malfunctioning, adding refrigerant will not solve the problem. A proper diagnosis should always be performed before assuming that low refrigerant is the sole cause of poor cooling performance.

When an AC Recharge Will Not Fix the Problem

While a Toyota Sienna air conditioning recharge can restore cooling performance when refrigerant levels are low, it is important to understand that not every AC problem is caused by insufficient refrigerant. In some situations, adding refrigerant will provide little or no improvement because another component within the system has failed.

One common issue is a faulty AC compressor. The compressor is responsible for circulating refrigerant throughout the system. If it becomes damaged or fails internally, refrigerant may not move properly, resulting in warm air from the vents regardless of refrigerant levels. Symptoms often include unusual noises, compressor clutch problems, or a complete lack of cooling.

A damaged condenser can also reduce AC performance. Located near the front of the vehicle, the condenser is vulnerable to road debris, corrosion, and impact damage. Bent fins or leaks can prevent proper heat transfer and reduce the system’s ability to cool the refrigerant.

The expansion valve may also be responsible for poor cooling. This component regulates refrigerant flow into the evaporator. If it becomes clogged or malfunctions, the refrigerant may not circulate correctly, causing inconsistent temperatures or insufficient cooling.

Electrical problems should not be overlooked. Faulty sensors, blown fuses, damaged wiring, or malfunctioning control modules can interfere with AC operation. In these cases, the system may appear to have a refrigerant issue when the actual cause is electrical.

Large refrigerant leaks represent another situation where a recharge alone is ineffective. If refrigerant escapes shortly after being added, a leak test should be performed to identify and repair the source before additional refrigerant is introduced.

Understanding these possibilities can help prevent wasted time and money while ensuring that the true cause of the cooling problem is properly addressed.

Toyota Sienna Air Conditioning Recharge Cost

One of the most common questions vehicle owners ask is how much a Toyota Sienna air conditioning recharge will cost. The answer depends on whether you choose to perform the work yourself or hire a professional technician.

A DIY recharge is generally the most affordable option. A basic recharge kit typically costs between $30 and $80, depending on the included components and refrigerant type. Additional tools such as leak detection dye, UV lights, and digital thermometers may increase the overall expense but can improve diagnostic accuracy.

For vehicles using R1234yf refrigerant, costs are often higher because the refrigerant itself is more expensive than traditional R134a. Owners should verify their vehicle’s requirements before purchasing supplies.

Professional AC recharge services usually cost more but provide additional benefits. Many repair shops perform pressure testing, leak inspections, and system evaluations as part of the service. Depending on location, refrigerant type, and vehicle condition, professional recharge services commonly range from $150 to $400 or more.

If leaks or failed components are discovered during inspection, repair costs can increase significantly. Compressor replacement, condenser repairs, or evaporator replacement may raise total expenses into the hundreds or even thousands of dollars.

For owners with basic mechanical knowledge, a DIY recharge can be a cost-effective solution when low refrigerant is the only issue. However, professional service is often the better choice when leaks, electrical faults, or component failures are suspected.

Frequently Asked Questions

How often should a Toyota Sienna air conditioning system be recharged?

There is no fixed recharge interval for most Toyota Sienna models. A properly sealed AC system can operate for years without requiring additional refrigerant. If cooling performance declines, the system should be inspected for leaks or other issues before recharging.

Can I recharge my Toyota Sienna AC system myself?

Yes, many owners successfully perform a DIY recharge using a quality recharge kit and the correct refrigerant. However, it is essential to follow safety guidelines, monitor system pressure carefully, and avoid overcharging.

What refrigerant does a Toyota Sienna use?

The refrigerant type depends on the model year. Many older Toyota Sienna models use R134a refrigerant, while newer models typically use R1234yf. Always check the underhood refrigerant label for the correct specification.

Why is my AC still blowing warm air after a recharge?

If the system continues to produce warm air after reaching the correct refrigerant level, the problem may involve the compressor, condenser, expansion valve, electrical components, or a significant refrigerant leak. A professional diagnosis may be necessary.

Is it normal for refrigerant levels to decrease over time?

Small refrigerant losses can occur gradually over many years. However, significant refrigerant loss usually indicates a leak that should be located and repaired to prevent recurring problems.

Conclusion

A properly functioning air conditioning system is essential for maintaining comfort in your Toyota Sienna, especially during hot summer weather and long family road trips. When cooling performance begins to decline, low refrigerant is often one of the first issues worth investigating. Performing a Toyota Sienna air conditioning recharge can restore cold air, improve cabin comfort, and help reduce unnecessary wear on important AC components.

However, successful results depend on using the correct refrigerant, following proper safety procedures, and carefully monitoring system pressure throughout the recharge process. Vehicle owners should also remember that refrigerant loss may indicate an underlying leak that requires attention. Simply adding refrigerant without addressing the root cause can lead to recurring problems and additional repair costs.

By understanding the warning signs of low refrigerant, gathering the right tools, and following a proven recharge procedure, many Toyota Sienna owners can confidently restore their vehicle’s cooling performance. If the system continues to struggle after a recharge, a professional inspection can help identify more complex issues before they become major repairs.

With proper maintenance and timely attention to AC problems, your Toyota Sienna can continue delivering reliable cooling performance and a comfortable driving experience for years to come.
