The Dodge Ram blend door actuator is located inside the HVAC housing behind the dashboard, but the exact position depends on the truck’s model year and climate control configuration. This small electronic component controls the movement of the blend door, which regulates how much warm or cold air enters the cabin.
Finding the correct Dodge Ram blend door actuator location is important because many HVAC problems come from actuator failure, incorrect calibration, or damage to the internal blend door mechanism. Dodge Ram trucks use multiple HVAC actuators, including the blend door actuator, mode door actuator, and recirculation door actuator, so identifying the correct component prevents unnecessary repairs.
The actuator location changes across Dodge Ram generations. Older models may place the actuator in areas that require removing interior panels, while newer Ram trucks use updated HVAC designs with different access points. Understanding these differences helps vehicle owners and mechanics diagnose temperature control problems more efficiently.
This guide explains the Dodge Ram blend door actuator location by model year, how to access the component, common failure symptoms, testing methods, and replacement considerations. With the correct information, locating and repairing an HVAC actuator becomes a more straightforward process.
Where Is the Dodge Ram Blend Door Actuator Located?

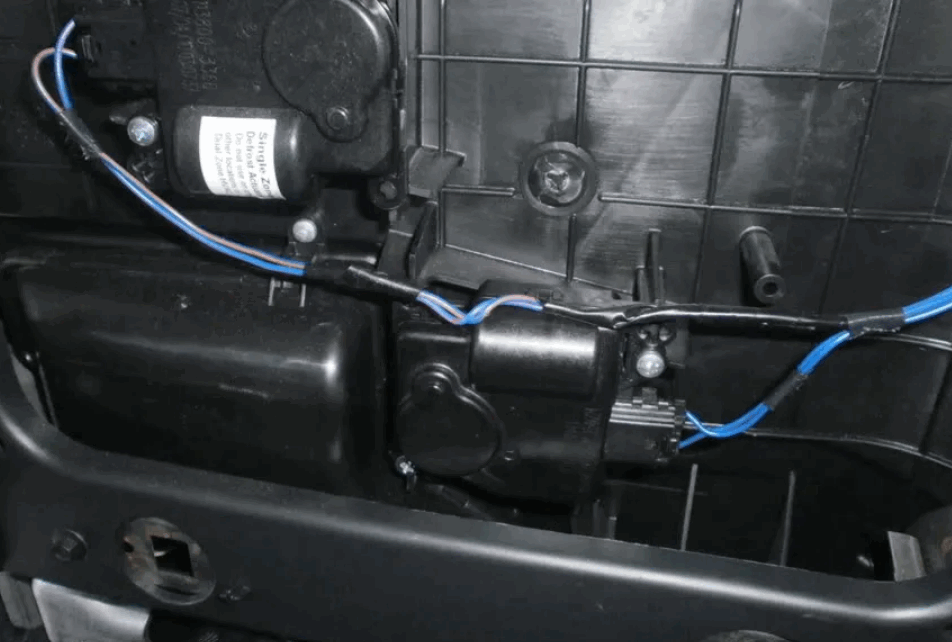

The Dodge Ram blend door actuator is located on the HVAC housing behind the dashboard, where it controls the position of the blend door that mixes warm and cold air before it enters the cabin. The HVAC housing contains several internal doors and actuators, so the exact actuator location depends on the vehicle generation, climate control system, and cab configuration.
The blend door actuator is connected directly to the HVAC case and operates through an electric motor controlled by the climate control module. When the driver changes the temperature setting, the actuator receives a signal and moves the blend door to adjust airflow temperature. Because the HVAC housing is installed deep inside the dashboard structure, the actuator is not normally visible from the cabin without removing access panels or interior components.
Many Dodge Ram models have more than one HVAC actuator, which creates confusion during diagnosis. The blend door actuator controls temperature adjustment, while the mode door actuator controls airflow direction and the recirculation actuator controls outside or recirculated air selection. A clicking sound behind the dashboard does not always indicate a failed blend door actuator because another HVAC actuator may produce a similar symptom.
The actuator location also changes between Dodge Ram generations because Chrysler and Ram redesigned the HVAC system over time. For example, older Dodge Ram trucks may require access from the lower dashboard area, while newer Ram models often use updated HVAC housings with different mounting positions and electronic control systems.
Before replacing the component, it is important to confirm the model year and identify the correct actuator. Locating the correct Dodge Ram blend door actuator prevents replacing the wrong HVAC component and helps reduce unnecessary repair costs.
Where Is the Blend Door Actuator Located on Different Dodge Ram Model Years?
The Dodge Ram blend door actuator location changes depending on the model year because each generation uses a different HVAC housing design. The actuator is always connected to the HVAC case behind the dashboard, but the access point, mounting position, and repair difficulty vary between older Dodge Ram trucks and newer Ram models.
For the 2002 to 2008 Dodge Ram, the blend door actuator is located on the HVAC housing behind the dashboard area. Access usually requires removing lower dashboard components to reach the actuator mounting points and electrical connector. These trucks use a traditional HVAC layout where the actuator position is closely related to the heater and air conditioning housing placement.
For the 2009 to 2018 Ram 1500, the blend door actuator location is also within the HVAC housing behind the dashboard, but the system design changed with improved climate control features. Depending on the HVAC configuration, access may involve removing the glove box area or additional interior trim panels. Models equipped with automatic climate control may have multiple actuators, making correct identification necessary before replacement.
The Ram 1500 Classic continues using a similar platform to earlier Ram generations, so the actuator location follows many of the same access patterns as previous models. However, equipment options such as dual-zone climate control can affect which actuator needs inspection.
For the 2019 and newer Ram 1500, the HVAC system uses a more advanced electronic design with integrated climate control functions. The blend door actuator remains inside the HVAC housing behind the dashboard, but diagnosis may require electronic scanning and calibration procedures after replacement.
Because the actuator location differs across generations, checking the exact model year before starting repairs is the most reliable way to find the correct component and avoid removing unnecessary dashboard parts.
How Can You Access the Dodge Ram Blend Door Actuator?
Accessing the Dodge Ram blend door actuator requires reaching the HVAC housing behind the dashboard. The exact process depends on the truck generation and HVAC system. Some models provide easier access, while others require more interior disassembly.
Start by identifying the correct HVAC actuator. Dodge Ram trucks use several actuators inside the HVAC system. These include the blend door actuator, mode door actuator, and recirculation door actuator. The blend door actuator controls temperature adjustment. The other actuators control airflow direction and air circulation.
Most Dodge Ram repairs begin with removing lower dashboard panels, trim pieces, or the glove box. These steps expose the HVAC housing and reveal the actuator location. After gaining access, remove the actuator screws and disconnect the electrical connector. The actuator can then be inspected or replaced.
Some models require more repair time because the actuator sits in a difficult position. Dual zone climate control systems often create additional challenges. These systems use separate actuators to control different temperature areas. Replacing the wrong actuator will not fix the HVAC problem.
After installing a replacement actuator, perform an HVAC calibration procedure if the vehicle requires it. The calibration allows the climate control module to learn the actuator position. Without calibration, the system may continue showing incorrect temperature control or actuator movement issues.
Understanding the access process before starting the repair helps prevent unnecessary dashboard removal. It also improves repair accuracy and reduces the chance of replacing the wrong HVAC component.
What Are the Symptoms of a Bad Dodge Ram Blend Door Actuator?
A bad Dodge Ram blend door actuator causes problems with cabin temperature control because the actuator cannot move the blend door into the correct position. The blend door controls how much heated or cooled air enters the cabin. When the actuator fails, the HVAC system may stop responding correctly to temperature settings.
The most common symptom is a clicking noise behind the dashboard. This sound usually comes from damaged internal gears inside the actuator. The small plastic gears wear down over time and cannot move the blend door smoothly. The actuator motor continues to operate, but the damaged gears create repeated clicking sounds.
Another common symptom is incorrect air temperature from the vents. The HVAC system may blow warm air when the driver selects cold air. It may also produce cold air when the heater setting is active. This happens because the blend door remains stuck in one position and cannot control the air mixture.
Some Dodge Ram owners experience different temperatures from different vents. Dual zone climate control systems can show this problem when one actuator fails while the other side continues working normally. For example, the driver side may produce warm air while the passenger side produces cold air.
A failed blend door actuator can also cause slow or inconsistent temperature changes. The climate control system may respond late or fail to reach the selected temperature. In some cases, the actuator loses its calibration and requires a relearn procedure after diagnosis.
Before replacing the actuator, check the symptoms carefully. A damaged blend door, wiring problem, or HVAC control module issue can create similar problems. Accurate diagnosis helps confirm that the blend door actuator is the actual source of the failure.
How Do You Test a Dodge Ram Blend Door Actuator Before Replacement?
Testing a Dodge Ram blend door actuator before replacement helps confirm whether the actuator causes the HVAC problem. Many temperature control issues can come from other components, including the blend door, wiring, or climate control module. A proper diagnosis prevents unnecessary part replacement.
The first test involves changing the temperature settings while listening for actuator movement. Turn the climate control from cold to hot and from hot to cold. A working actuator should move smoothly when it receives a signal from the HVAC control system. A repeated clicking sound or no movement may indicate an internal actuator failure.
The second test involves checking the actuator connection and electrical supply. Inspect the wiring connector for loose connections, corrosion, or damaged wires. The actuator needs a proper electrical signal to operate. A damaged connector can create symptoms that look similar to a failed actuator.
A diagnostic scan tool can provide additional information on newer Dodge Ram models. Some vehicles store HVAC fault codes when the actuator cannot reach the expected position. These codes help identify problems with actuator operation and climate control communication.
The HVAC calibration procedure is another useful diagnostic step. The climate control module can lose the correct actuator position after battery disconnection or component failure. Running a relearn process allows the system to reset actuator movement limits.
Before installing a new Dodge Ram blend door actuator, confirm that the actuator receives power, responds to commands, and moves the blend door correctly. Proper testing saves time and ensures that the repair addresses the actual HVAC problem.
Do You Need to Remove the Dashboard to Replace a Dodge Ram Blend Door Actuator?
Replacing a Dodge Ram blend door actuator does not always require complete dashboard removal. The repair process depends on the truck generation, HVAC design, and actuator position. Some models provide direct access through smaller openings, while others require more extensive interior disassembly.
Older Dodge Ram trucks may require more time because the actuator location can make access difficult. Technicians may need to remove dashboard panels, trim pieces, or other interior components to reach the HVAC housing. The amount of work depends on how the manufacturer positioned the actuator during vehicle production.
Newer Ram models often use improved HVAC layouts, but access can still vary between configurations. Vehicles with automatic climate control or dual zone systems may contain additional actuators and wiring connections. This increases the chance of removing extra components during diagnosis and repair.
Before removing the dashboard, inspect the actuator location and confirm the repair procedure for the specific model year. Many unnecessary repairs happen because owners assume the entire dashboard must come out before checking the actual actuator position.
The replacement process usually includes disconnecting the electrical connector, removing the actuator mounting screws, installing the new component, and completing the calibration procedure. The repair difficulty depends more on actuator accessibility than the actuator itself.
Understanding the required access level helps vehicle owners estimate repair time and avoid unexpected labor costs. A correct diagnosis combined with model specific information makes the replacement process faster and more efficient.
How Much Does It Cost to Replace a Dodge Ram Blend Door Actuator?
The cost to replace a Dodge Ram blend door actuator depends on the actuator price, labor time, vehicle model year, and repair difficulty. The part itself is usually less expensive than the labor because accessing the HVAC housing can require significant disassembly.
A replacement blend door actuator usually costs less than major HVAC components because it is a small electronic control device. However, labor costs can increase when the actuator sits in a difficult location behind the dashboard. Technicians charge more when the repair requires removing interior panels, accessing tight areas, or completing additional calibration procedures.
The vehicle generation also affects the total repair cost. Older Dodge Ram models may have simpler HVAC systems, but some actuator locations require longer access procedures. Newer Ram trucks may use advanced climate control systems that require electronic diagnosis and actuator relearning after installation.
The number of actuators in the HVAC system can also influence the final cost. Some Dodge Ram trucks use multiple HVAC actuators for temperature control, airflow direction, and air recirculation. A technician must identify the failed actuator before starting the repair to avoid replacing unnecessary components.
DIY replacement can reduce labor expenses for owners with mechanical experience. However, the repair requires careful handling of dashboard components, electrical connectors, and HVAC parts. Incorrect installation can create new problems or require additional repairs.
Before replacing a Dodge Ram blend door actuator, compare the repair requirements for the specific model year. Confirming the correct actuator location and access procedure provides a more accurate estimate of the total repair cost.
How Do You Calibrate a Dodge Ram Blend Door Actuator After Replacement?
A Dodge Ram blend door actuator calibration procedure allows the HVAC system to recognize the new actuator position after replacement. The climate control module needs accurate position information to control the blend door correctly. Without calibration, the system may not deliver the selected temperature or may continue showing incorrect HVAC behavior.
The calibration process depends on the Dodge Ram model year and HVAC system design. Some vehicles can complete the relearn process automatically after reconnecting the battery or cycling the ignition. Other models require a scan tool to communicate with the HVAC control module and start the calibration procedure.
After installing a new actuator, the climate control module checks the actuator movement range. The module learns the fully open and fully closed positions of the blend door. This information allows the system to adjust air temperature accurately during normal operation.
If calibration does not complete correctly, the actuator may continue moving repeatedly or produce clicking sounds. The HVAC system may also provide incorrect air temperature because the control module does not know the actual blend door position.
Before starting calibration, confirm that the replacement actuator matches the original component. Different Dodge Ram models use different actuator designs and control systems. Installing an incorrect actuator can prevent successful calibration.
A proper calibration procedure completes the repair process and improves HVAC reliability. After calibration, test the temperature controls, check airflow from the vents, and confirm that the system responds correctly to temperature changes.
Dodge Ram Blend Door Actuator Location: Complete Guide by Model Year
The Dodge Ram blend door actuator is located inside the HVAC housing behind the dashboard, but the exact position changes between model years and HVAC configurations. Understanding the correct location helps owners and technicians identify the right component before starting a repair.
Different Dodge Ram generations use different HVAC layouts. Older Dodge Ram trucks, Ram 1500 Classic models, and newer Ram 1500 vehicles may require different access methods. Some repairs involve removing small interior panels, while others require more extensive dashboard access.
A correct diagnosis is essential because the blend door actuator is only one part of the HVAC system. Problems such as clicking noises, incorrect air temperature, or uneven cooling can also come from damaged blend doors, wiring issues, or climate control module failures. Testing the system before replacement reduces unnecessary repair costs.
After replacing the actuator, completing the calibration process ensures that the HVAC module recognizes the new component position. This step helps restore accurate temperature control and prevents repeated actuator problems.
Finding the Dodge Ram blend door actuator location by model year provides the information needed for a more efficient repair. By identifying the correct actuator, following proper access procedures, and completing calibration, vehicle owners can restore reliable HVAC performance and avoid replacing unnecessary parts.
