If your Ford suddenly lights up the dashboard with warning symbols, or refuses to start for no clear reason, the Ford U1900 Code might be hiding behind it. This code is one of the most common communication faults found in Ford vehicles that use the Controller Area Network (CAN) system. When the U1900 code appears, it means that one or more control modules have lost their ability to talk to each other through the CAN network. As a result, the car may display random warning lights, show incorrect speed readings, or even enter limp mode.
Understanding the Ford U1900 Code is important because it can point to issues ranging from a weak battery or poor ground connection to a failing instrument cluster or ABS module. The good news is that this code can often be fixed without replacing major parts, as long as the source of the communication error is properly identified. In this guide, you will learn what causes the Ford U1900 Code, how to recognize its symptoms, and what simple steps can help you fix the problem quickly and safely.
Contents
What Is the Ford U1900 Code?
The Ford U1900 Code is a diagnostic trouble code that signals a problem in the communication network of your vehicle. Modern Ford cars rely on a system called the Controller Area Network, or CAN bus, which allows different electronic modules to share information instantly. These modules include the Powertrain Control Module, the Anti Lock Brake System, the Body Control Module, and the instrument cluster. Each one sends and receives data continuously to ensure that every part of the vehicle functions in sync.
When the Ford U1900 Code is triggered, it indicates that one or more of these modules have lost communication. This interruption can cause false readings on the dashboard, non responsive gauges, or even temporary loss of key vehicle functions. The issue itself does not point to a single faulty part but rather highlights a communication breakdown somewhere along the CAN wiring or within a module. Understanding how the CAN network operates helps you see why this error can appear suddenly and why it must be checked carefully to prevent further electrical issues.
Common Causes of the Ford U1900 Code
The Ford U1900 Code usually appears when there is a communication failure in the CAN bus network. This network connects all major control modules in the vehicle, and even a small disruption can cause the system to lose contact. Understanding the common causes helps narrow down the source of the problem before spending time or money on unnecessary repairs.

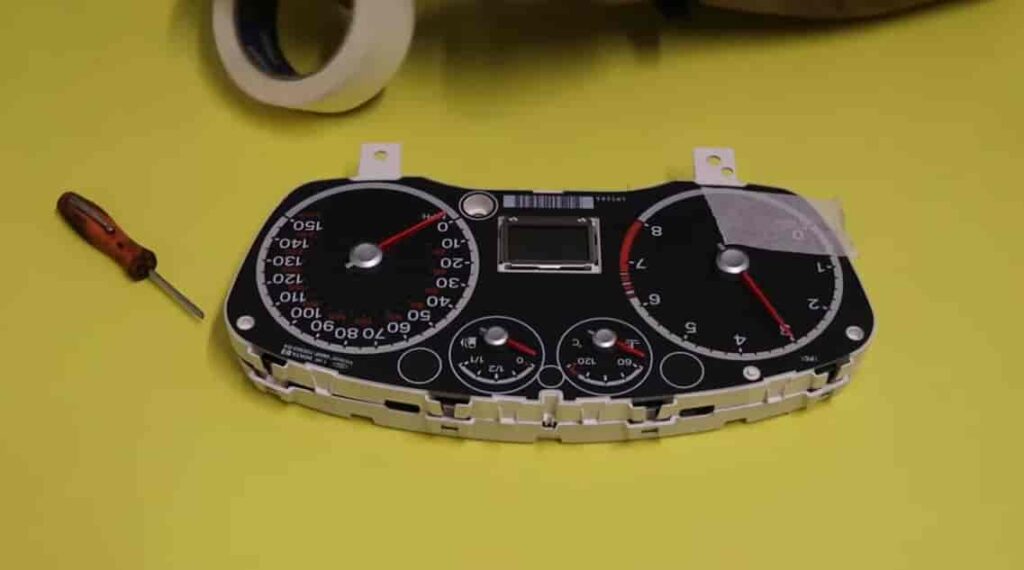

One of the most frequent reasons for the Ford U1900 Code is a faulty instrument cluster. Over time, heat and vibration can weaken solder joints inside the cluster, leading to unstable connections that interrupt CAN signals. Another possible cause is damaged wiring or poor ground points, especially those located under the battery tray or near the body control module. Corrosion or loose connections can easily interfere with voltage flow. Low battery voltage is also a known trigger since the CAN network depends on stable power to keep modules communicating properly.
In some cases, a malfunctioning ABS module or aftermarket accessory can overload the CAN line and cause the system to shut down communication temporarily. Because this code can result from more than one factor, it is best to inspect each potential cause carefully and rule them out step by step.
Symptoms and Warning Signs
When the Ford U1900 Code appears, the symptoms can range from small electrical glitches to serious performance issues. Many drivers first notice unusual behavior in the dashboard, such as the check engine light staying on or the ABS and airbag lights flashing at random. In some cases, the speedometer or tachometer may drop to zero even though the car is still moving, which is a clear sign of lost communication between modules.
Another common symptom of the Ford U1900 Code is the vehicle entering limp mode, where the engine power is reduced to protect key systems. Drivers may also experience difficulty starting the car, temporary loss of power steering, or the immobilizer light flashing without reason. Sometimes the car seems fine at first but later shows the same warning lights again, which indicates an intermittent fault on the CAN line.
If you connect a diagnostic scanner, you might find that it cannot read certain modules or that the scan tool itself loses connection. These are strong signs that a communication error is disrupting data exchange. Paying attention to these symptoms early can prevent the issue from spreading and help you locate the real cause faster.
How to Diagnose the Ford U1900 Code
Diagnosing the Ford U1900 Code requires patience and a clear method because the issue often lies in the vehicle’s communication system rather than a single part. The first step is to scan the entire vehicle using a professional OBD II diagnostic tool that can access all Ford modules. Record every stored and pending code, not only the U1900, since companion codes often reveal which module stopped responding first.
Next, inspect the battery and charging system. A weak or unstable voltage can trigger false communication errors, so make sure the battery is fully charged and the terminals are clean. Check the ground points located near the battery and under the chassis, as a loose or corroded connection can interrupt the CAN signal.
If the basic checks are fine, use a multimeter to measure the voltage of the CAN high and CAN low wires. With the ignition on, you should see around 3.5 volts on CAN high and 1.5 volts on CAN low. Any reading that is far from these values may indicate a short or an open circuit in the wiring. Disconnect one module at a time to identify if a specific unit is overloading the network.
Finally, inspect the instrument cluster and ABS module connectors for any signs of moisture or poor contact. When the communication line returns to normal and the code does not reappear after a test drive, the problem has likely been found and corrected.
Quick Fix Guide: Step-by-Step Repair Tips
If your scanner shows the Ford U1900 Code, you can follow a few simple steps to fix the issue quickly and safely. These steps focus on restoring communication between modules and stabilizing the CAN network before replacing any major parts.
Step 1: Reset the electrical system
Start by turning off the ignition and disconnecting the negative battery cable for about five minutes. This allows all control modules to discharge and reset. After reconnecting the battery, start the engine and check if the Ford U1900 Code reappears. In many cases, a short reset clears temporary CAN communication faults caused by voltage spikes.
Step 2: Check the battery and ground connections
Make sure the battery is fully charged and that both terminals are clean and tight. Follow the main ground cables and inspect their mounting points on the chassis and engine block. Remove any rust or corrosion and retighten the bolts. A weak ground is one of the most common reasons for the Ford U1900 Code to return.
Step 3: Inspect wiring and connectors
Look closely at the wiring harness that runs between the Powertrain Control Module, the ABS module, and the instrument cluster. Check for cuts, pinched sections, or loose plugs. Reconnect each connector firmly and make sure there is no moisture inside. Even a slightly bent pin can break the flow of data in the CAN bus.
Step 4: Test the CAN voltage
Use a digital multimeter to measure the voltage between the CAN high and CAN low lines. With the ignition on, CAN high should read about 3.5 volts and CAN low around 1.5 volts. If the readings are off, there may be a short to power, a short to ground, or an open circuit in the wiring. Fix or replace any damaged section before moving to the next step.
Step 5: Reconnect and clear the code
After verifying all connections, use your diagnostic scanner to clear the stored codes. Start the vehicle and perform a short drive while monitoring the live data. If the Ford U1900 Code does not come back, the issue has been successfully resolved. If it does return, the problem may lie in a specific control module, and professional testing might be needed.
By following these steps carefully, most CAN communication faults can be repaired without expensive replacements. Regular maintenance of wiring and electrical connections helps prevent the Ford U1900 Code from reappearing in the future.
Prevention and Maintenance Tips
Preventing the Ford U1900 Code from appearing again is mostly about keeping the vehicle’s electrical and communication systems healthy. Since the CAN network depends on clean power and solid connections, a few simple habits can make a big difference in long term reliability.
First, check your battery health every few months. Weak voltage or unstable charging can cause intermittent communication faults between modules. Make sure the terminals are clean and free from corrosion. Replace the battery if it is old or frequently discharges.
Second, pay attention to the ground connections throughout the car. These points are often overlooked but they are vital for stable communication. Remove and clean them once a year, especially the ones under the battery tray and near the transmission.
Third, avoid using low quality aftermarket accessories that connect to the OBD port or wiring harness. These can overload the CAN bus and trigger false faults like the Ford U1900 Code. Always disconnect such devices when not in use.
Finally, schedule periodic diagnostic scans, even when the car seems fine. Catching small electrical inconsistencies early can prevent a full network failure later. With these preventive steps, you can reduce the risk of CAN communication faults and keep your Ford running smoothly.
Conclusion
The Ford U1900 Code is a reminder that even small communication issues can affect how a vehicle performs. When control modules stop sharing data correctly, the car may show strange warning lights or fail to start. The good news is that this code rarely means a major failure. In most cases, it results from weak electrical grounds, low battery voltage, or corrosion in the wiring. By taking time to inspect these areas, you can often fix the problem quickly and restore normal operation.
Diagnosing the Ford U1900 Code teaches an important lesson about vehicle maintenance. Every connector, cable, and module depends on clean and stable communication through the CAN network. Keeping these parts in good condition reduces the chance of future faults and helps your Ford run smoothly.
If the code returns after basic checks, it is best to have the system tested by a qualified Ford technician. They can perform deeper diagnostics and confirm whether a specific module is failing. Fixing a CAN communication fault early prevents more serious issues later. With careful attention and regular maintenance, you can keep your Ford reliable, safe, and free from the U1900 Code for many miles ahead.ng rather than a major breakdown helps you protect both your vehicle’s performance and your peace of mind.
