Building or rebuilding a Ford 302 engine requires more than passion and a good set of tools. Every bolt you tighten carries the responsibility of keeping this legendary small block together under thousands of RPMs. The right torque values are not just numbers on a chart. They are the key to preventing oil leaks, head gasket failures, and warped components that could destroy hours of work.
The Ford 302, known as the 5.0-liter small block, has powered classic Mustangs, Broncos, and F-150s for decades. Its reliability depends heavily on precision during assembly. Using the correct torque specs and following the proper bolt sequence ensures even pressure distribution across the block and heads, allowing the engine to perform smoothly and last longer.
This guide breaks down every essential torque specification you need for a complete rebuild. You will learn the correct torque values for the main caps, connecting rods, cylinder heads, and intake manifolds, along with an easy-to-follow tightening order. Whether you are a professional mechanic or a first-time rebuilder, this article provides verified data, practical tips, and sequence guidance to help you assemble your Ford 302 with confidence. Save this guide or download the full chart before you start tightening the first bolt.
Contents
Understanding the Ford 302 Engine

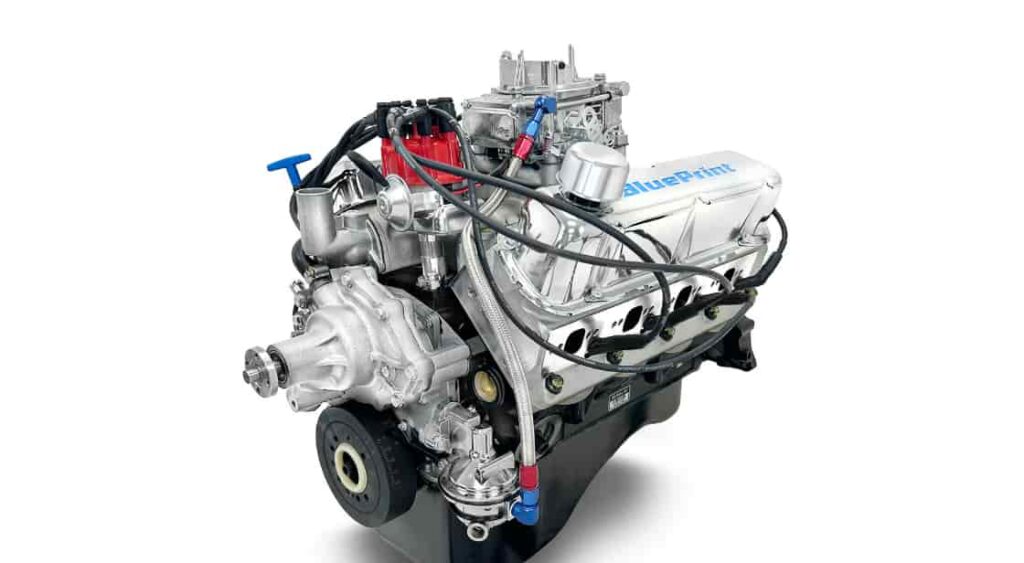

The Ford 302 engine stands as one of the most iconic V8 powerplants ever built. Introduced in 1968, this small block engine quickly became the heart of classic American performance. From the early Mustangs and Cougars to the later Fox-body 5.0 models, the 302 earned a reputation for durability, responsiveness, and tunability. Its compact design made it a favorite for both factory builds and aftermarket projects.
At its core, the Ford 302 is a 90-degree V8 with a displacement of 302 cubic inches or roughly 5.0 liters. The engine block features a cast-iron construction, housing a forged crankshaft and connecting rods that deliver strength without excessive weight. Over the years, Ford produced multiple variations including the standard 302, the high-performance Boss 302, and the 302 HO found in the Mustang GT. Each version featured slight differences in heads, camshaft profiles, and compression ratios, but the torque specs remained fundamentally similar.
Understanding the internal structure of the engine is crucial before you begin tightening bolts. Every component, from the main caps and connecting rods to the cylinder heads and intake manifold, plays a specific role in maintaining the balance of power and reliability. Torque values may differ slightly between model years or when using aftermarket parts such as ARP bolts. Always verify the specifications for your exact build year and component type before assembly.
When handled with precision, the Ford 302 delivers both strength and smooth operation. This engine is not just a piece of machinery. It represents decades of innovation and a legacy of power that continues to inspire builders and enthusiasts today.
Why Torque Specs Matter
Torque specifications are not just mechanical details. They are the foundation of a reliable and long-lasting engine. Every bolt in the Ford 302 has a specific role, and each must be tightened with the correct force to keep the engine balanced and leak-free. When a bolt is over-torqued, it can stretch the threads or distort the metal around it, causing cracks or uneven pressure. Under-torquing, on the other hand, can lead to loose components, oil leaks, and even catastrophic failures once the engine reaches high RPM.
The precision of torque application ensures that every surface within the engine seals correctly. The head gasket, for example, depends entirely on uniform pressure to prevent coolant and oil from mixing. If even one bolt is tightened unevenly, it can create a weak point that leads to failure under heat and pressure. The same principle applies to the main caps and connecting rods, where proper torque guarantees that the crankshaft remains stable and rotates freely without friction or imbalance.
Many rebuilders underestimate the impact of small torque variations. A difference of just five foot-pounds can alter how the cylinder head sits against the block. This is why using a high-quality torque wrench and calibrating it regularly is essential. Applying torque in multiple stages, rather than in a single step, allows the engine components to settle gradually and distribute pressure evenly.
In short, torque specs protect your hard work. They are the invisible safeguard that keeps the Ford 302 performing as intended. Skipping or guessing torque values can lead to costly mistakes, wasted time, and even a damaged engine block. Understanding and following these specs precisely is what separates a successful rebuild from a failed one.
Ford 302 Torque Specs Chart
When rebuilding or servicing a Ford 302 engine, accuracy is everything. The following torque specifications cover all the major components you will encounter during assembly. These values represent standard factory recommendations for most Ford 302 engines produced between 1968 and 1995. If you are using aftermarket hardware such as ARP bolts, always refer to the manufacturer’s data sheet for the exact torque setting.
Main Cap Bolts
The main caps secure the crankshaft inside the block, so proper torque is essential for crankshaft stability and oil clearance. Tighten each bolt gradually in three stages until you reach the final specification.
Torque: 60 to 70 ft-lbs
Connecting Rod Bolts
These bolts connect the rods to the crankshaft. Consistent torque ensures smooth rotation and prevents bearing damage.
Torque: 25 to 33 ft-lbs
Cylinder Head Bolts
Cylinder heads must be tightened evenly to prevent gasket leaks and warping. Always follow the correct bolt sequence, starting from the center and working outward.
Torque: 65 to 72 ft-lbs
Intake Manifold Bolts
The intake manifold seals the air and fuel passages between the cylinder heads. Uneven torque here can lead to vacuum leaks or coolant seepage.
Torque: 23 to 25 ft-lbs
Exhaust Manifold Bolts
The exhaust manifold experiences extreme temperature changes. Proper torque prevents leaks and broken studs.
Torque: 18 to 24 ft-lbs
Oil Pan Bolts
These small bolts hold the oil pan and gasket to the bottom of the block. Over-torquing can distort the pan or crush the gasket.
Torque: 12 to 15 ft-lbs
Flywheel Bolts
The flywheel connects the crankshaft to the transmission. Because it spins at high speed, secure torque is critical for safety.
Torque: 75 to 85 ft-lbs
When tightening any of these fasteners, use clean and lightly lubricated threads unless otherwise specified. Apply torque in small, even increments to avoid stress concentration. Always check your torque wrench calibration and retorque the cylinder heads after the first heat cycle if recommended by the gasket manufacturer.
Having a clear torque chart nearby during assembly saves time and eliminates guesswork. To make your rebuild easier, you can print or download a Ford 302 torque specs chart and keep it at your workbench for quick reference.
Head Bolt Torque Sequence Explained
The cylinder head bolts on a Ford 302 engine must be tightened in a specific order to ensure that the head gasket seals evenly across the surface of the block. Uneven pressure is one of the most common causes of gasket failure and coolant leakage. The correct torque sequence helps the head settle smoothly and distributes clamping force evenly from the center outward.
When tightening the bolts, always begin with the bolts located in the middle of the cylinder head. Move outward in a crisscross pattern until you reach the outer edges. This pattern reduces the risk of warping and guarantees that both sides of the head compress the gasket at the same rate. If you tighten the outer bolts first, you might trap air pockets or distort the metal surface, which can cause leaks under high temperature and pressure.
Use a clean torque wrench and make sure each bolt and thread hole is free of oil, dirt, and debris. Apply a small amount of engine oil or thread lubricant if specified by the manufacturer. Tighten the bolts in three gradual stages to reach the final torque specification. The recommended approach for most Ford 302 engines is as follows:
- Tighten each head bolt to 20 ft-lbs in the correct sequence.
- Tighten each again to 40 ft-lbs following the same pattern.
- Complete the final pass at 65 to 72 ft-lbs, ensuring even pressure on every bolt.
It is important to maintain consistency in your movements. Avoid rushing and double-check the torque after the final stage. Many professional builders mark each bolt with a small paint line after completing the final torque pass to confirm that no bolt was skipped.
If you are using performance parts or aftermarket head bolts, torque values may vary slightly. Always consult the manufacturer’s chart to verify the correct figures. Following the right torque sequence is the key to preventing warping, sealing problems, and engine overheating. A properly torqued head will maintain compression and durability for thousands of miles, making your Ford 302 both powerful and reliable.
Reassembly Tips for Longevity
Reassembling a Ford 302 engine is the moment when attention to detail determines whether your rebuild will last for years or fail within miles. Even after torquing every bolt to the correct specification, several small steps can make a major difference in performance and reliability.
Before installing any component, clean every surface thoroughly. Residual oil, dirt, or old gasket material can prevent a proper seal. Use a soft brush and a degreaser to clean the block, heads, and bolt holes. Any debris trapped inside can alter torque readings and create uneven pressure. Inspect every thread carefully and chase it with a thread tap if necessary to remove rust or imperfections.
Thread preparation plays a key role in long-term durability. Lightly lubricate the bolt threads with engine oil or a dedicated assembly lube to achieve consistent torque readings. Some areas, such as head bolts that enter coolant passages, may require a thread sealant instead of oil. Always check your manual or hardware specifications to confirm which method is recommended.
When assembling, move patiently and torque bolts in gradual steps rather than all at once. Allowing components to settle between stages ensures even stress distribution and prevents distortion. After assembly, rotate the crankshaft by hand to verify that everything moves freely without resistance or scraping. This simple check can save hours of troubleshooting later.
Once the engine is complete, perform a heat cycle and recheck the torque on the cylinder heads if required by your gasket manufacturer. Proper re-torquing helps compensate for minor material expansion during the first warm-up. Combining precision, cleanliness, and patience will guarantee that your Ford 302 engine runs smoothly, resists leaks, and remains strong for thousands of miles ahead.
Common Torque Mistakes and How to Avoid Them
Even experienced mechanics can make small torque mistakes that lead to major engine problems. The Ford 302 engine is built on precision, and a single overlooked step can cause leaks, noise, or failure after only a few miles. Understanding the most common torque errors helps you avoid unnecessary repairs and wasted effort.
One of the most frequent mistakes is skipping the torque sequence. Tightening bolts in random order places uneven stress on the block and heads. This imbalance often leads to warped components and blown gaskets. Always start from the center and work outward in stages, following the proper sequence for each section of the engine.
Another issue is using a torque wrench that is not calibrated. Over time, torque wrenches lose accuracy, and even a small error of five foot-pounds can distort aluminum components or damage threads. Always test your tool before a rebuild and store it properly after use. Applying torque in one quick motion instead of gradual steps is also a mistake. Engine materials expand and settle under pressure, so torquing in multiple passes allows parts to adjust naturally and hold the correct tension.
Contamination is another silent problem. Oil, coolant, or dirt on bolt threads can change friction and alter torque readings. Clean and dry every bolt hole before tightening, and never reuse old bolts that have stretched or show signs of corrosion. Incorrect lubrication is equally dangerous. Using oil where a thread sealant is required, or vice versa, can cause leaks and loss of clamping force.
Before starting the engine for the first time, perform a quick verification. Go over each critical fastener, check torque levels, and inspect for any missed bolts. This small routine can prevent expensive damage later. A useful checklist before ignition includes confirming head bolt torque, main cap torque, connecting rod torque, and fluid levels.
Avoiding these torque mistakes is not just about following rules. It is about protecting your time, money, and the legacy of a legendary engine. The Ford 302 rewards precision with reliability and power, but only if every bolt is treated with respect.
Conclusion
Rebuilding a Ford 302 engine is a blend of skill, patience, and respect for precision. Every torque value and sequence plays a vital role in how the engine performs once it comes to life. Following the correct torque specs ensures that every surface seals properly, every component aligns perfectly, and every rotation of the crankshaft remains smooth and balanced. It is this attention to detail that separates a strong, reliable rebuild from a short-lived one.
Throughout this guide, you have learned the importance of proper torque application, the exact specifications for each major component, and the correct tightening order for the cylinder heads. You have also seen how small mistakes in torque can lead to leaks, warped surfaces, or catastrophic engine failure. By applying the techniques and tips outlined here, you can build a Ford 302 that runs cleaner, lasts longer, and performs with the confidence that made it a classic in the first place.
Before you begin your next assembly, keep a copy of the torque chart close by. Save or download the complete Ford 302 Torque Specs guide so you always have accurate data on hand. Precision is not optional when dealing with an engine that carries decades of history and performance heritage. Treat every bolt as a promise of reliability.
Which part of your Ford 302 rebuild challenges you the most? Share your experience or questions below and join the community of builders who keep this legendary V8 alive for generations to come.
