Finding the starter on your Ford F150 can be tricky, especially for new owners or DIY enthusiasts. The starter powers your engine, making it start when you turn the key or press the button. Many drivers struggle to locate it because it sits near other engine components and connects directly to the electrical system. Knowing its location helps you troubleshoot problems quickly and prevents unnecessary mechanic visits.
This guide shows you exactly where the Ford F150 starter is and how to check for issues. You will learn simple steps to replace it safely and efficiently. Following this guide saves time and money while giving you confidence to handle basic maintenance. Whether your truck makes unusual noises, struggles to start, or needs a new starter, these instructions make the process clear. By the end, you will understand the starter’s function, its location, and the replacement procedure. You can maintain your Ford F150 reliably and keep it running smoothly.
Contents
Understanding the Starter in a Ford F150
The starter in a Ford F150 is a small but essential part that powers your engine. It converts electrical energy from the battery into mechanical motion to turn the engine over. Without a working starter, your truck cannot start, leaving you stranded. Learning how the starter works helps you spot problems early and plan repairs efficiently.
The starter has two main components: the motor and the solenoid. When you turn the key or press the start button, the solenoid pushes the starter gear to engage with the engine’s flywheel. The motor spins the gear, turning the engine over and allowing it to ignite fuel. Many drivers notice starter issues only when the engine struggles to start or makes unusual noises. Common signs include clicking sounds, slow cranking, or complete failure to start.
Ford F150 starters vary slightly by model year and engine type, but their basic function remains the same. They connect directly to the battery with thick wires and are mounted near the bottom of the engine. Knowing their location and how they operate helps you troubleshoot faster. Regular checks, such as inspecting connections and listening for abnormal sounds, can prevent sudden failures.
Understanding the starter gives you the knowledge to maintain your Ford F150 safely and efficiently. It prepares you to locate the starter, assess its condition, and perform maintenance or replacement when needed. This foundational knowledge ensures your truck starts reliably and avoids costly repairs.

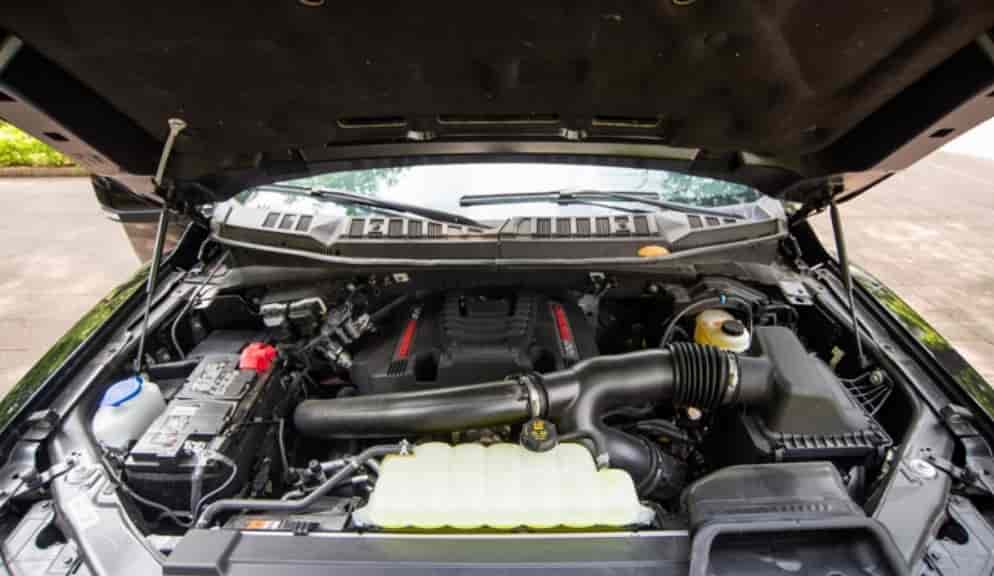

Where Is the Ford F150 Starter Located?
Finding the starter on a Ford F150 is easier when you know what to look for. The starter is usually mounted near the bottom of the engine, close to the transmission. It connects directly to the battery with thick wires and engages with the engine’s flywheel. Its location can vary slightly depending on the model year and engine type, but it is generally in the same area across most F150 trucks.
For newer models, such as 2020 to 2025, the starter is often located on the passenger side of the engine. On older models, it may sit on the driver’s side or near the front of the engine block. Regardless of the exact placement, it is always attached with several bolts and connected with heavy-gauge wires to the battery. Identifying these features helps you distinguish the starter from other engine components.
To locate the starter quickly, look for a cylindrical motor with a smaller cylinder on top, which is the solenoid. Follow the thick positive cable from the battery; it usually leads directly to the starter. Make sure the engine is off and the battery is disconnected before attempting to touch or move any components. Using a flashlight can help spot the starter in tight spaces and clarify its connections.
Knowing the starter’s exact location saves time when diagnosing issues or performing a replacement. It also reduces the risk of damaging nearby parts. By understanding its placement and appearance, you can approach maintenance or repairs with confidence, ensuring your Ford F150 starts reliably every time.
How to Check if Your Ford F150 Starter is Failing
A failing starter can leave you stranded and create frustrating problems. Recognizing the signs early helps prevent a complete breakdown and costly repairs. The most common symptoms include unusual noises, slow cranking, and difficulty starting the engine. Clicking sounds when you turn the key often indicate that the starter solenoid is engaging but the motor is not turning. Slow cranking usually signals a worn starter or weak battery connection.
Another way to check the starter is by testing the electrical connections. Ensure the battery is fully charged and the cables are secure. Loose or corroded connections can mimic starter failure. Inspect the positive cable leading to the starter and the ground connections for any signs of wear or corrosion. Cleaning the contacts can sometimes restore proper function without replacing the starter.
You can also perform a simple tap test. Using a rubber mallet, gently tap the starter while someone else tries to start the engine. If the engine starts, the starter is likely worn and may need replacement soon. Always take safety precautions: disconnect the battery before inspecting or touching the starter and avoid contact with moving parts.
Regularly monitoring your starter helps you address issues before they become serious. By listening for abnormal sounds, checking electrical connections, and performing simple tests, you can determine whether your Ford F150 starter needs attention. This proactive approach ensures your truck starts reliably and prevents unexpected failures on the road.
Step-by-Step Guide to Remove and Replace the Starter
Replacing the starter on a Ford F150 may seem intimidating, but following clear steps makes the process manageable. First, ensure your truck is parked on a flat surface and the engine is off. Disconnect the negative battery cable to prevent electrical shocks or short circuits. Safety should always come first when working near the battery and engine.
Next, locate the starter near the bottom of the engine. Use a flashlight if needed to identify its cylindrical shape and the attached solenoid. The starter connects to the battery with thick wires and mounts to the engine block with bolts. Carefully note the wire positions or take a photo to ensure proper reinstallation.
Remove the bolts securing the starter using a suitable wrench or socket. Detach the electrical connections, keeping track of their original positions. Gently pull the starter away from the engine, avoiding contact with nearby hoses or components. Inspect the mounting area for dirt or corrosion, cleaning it before installing the new starter.
Install the new starter by positioning it in the correct spot and tightening the bolts securely. Reconnect the electrical wires exactly as they were originally, ensuring tight and clean connections. Reconnect the negative battery cable and test the starter by turning the key or pressing the start button. Your engine should start smoothly without unusual noises or hesitation.
Following these steps carefully reduces the risk of damage and ensures your Ford F150 starts reliably. Replacing the starter yourself saves time and money while giving you confidence to handle other maintenance tasks. By knowing the correct procedure and paying attention to detail, you can maintain your truck in top running condition.
Tips for Maintaining Your Ford F150 Starter
Maintaining the starter on your Ford F150 helps prevent unexpected failures and keeps your truck starting reliably. Regular inspections can catch problems early, saving time and money. Start by checking the electrical connections. Ensure the battery cables are tight, clean, and free from corrosion. Dirty or loose connections can cause the starter to fail or produce slow cranking.
Listen for unusual sounds when starting your truck. Clicking noises or grinding sounds can indicate that the starter or solenoid is wearing out. Addressing these signs early allows you to replace or repair components before a complete failure occurs. Avoid repeated attempts to start the engine if it does not respond, as this can overheat or damage the starter.
Choose quality replacement parts if your starter needs to be replaced. OEM starters provide reliable performance and longer lifespan, while aftermarket options can offer cost savings but may vary in quality. Ensure proper installation and secure connections to maintain consistent function.
Additionally, avoid letting the starter work under excessive strain. If your F150 frequently struggles to start, check the battery, alternator, and ignition system as well. A healthy electrical system reduces stress on the starter and extends its life. By following these maintenance tips, you can keep your Ford F150 starter in optimal condition, avoid costly repairs, and enjoy reliable starts every time you hit the road.
Conclusion
Understanding the starter location and function in your Ford F150 is essential for any owner who wants to maintain their truck properly. By knowing where the starter is, how it works, and the signs of potential failure, you can troubleshoot issues quickly and avoid unexpected breakdowns. Replacing or maintaining the starter yourself saves time and money while giving you confidence to handle basic repairs safely.
Regular checks, such as inspecting electrical connections, listening for unusual noises, and monitoring starting performance, can prevent costly repairs and extend the life of your starter. Choosing quality replacement parts and following proper installation procedures ensures reliable performance and keeps your truck running smoothly. Whether you perform a full starter replacement or just minor maintenance, understanding these steps empowers you to care for your Ford F150 effectively.
If you found this guide helpful, share your experience or tips in the comments below. Your feedback can help other F150 owners tackle starter issues with confidence. Following this guide will make troubleshooting, maintenance, and replacement straightforward, ensuring your Ford F150 starts reliably every time. Stay proactive, pay attention to your starter, and enjoy a truck that is ready to go whenever you need it.
